Our Products

Concrete Batch Plant

Haomei machinery is best concrete batch Plant,mobile batch plant,portable concrete batching plant,dry batch concrete plant,wet mix concrete batch plant and central mix concrete batch plant supplier.
Concrete batch plants is characterized by high productivity to produce various kinds of concrete, such as plastic concrete, thick concrete and so on. Concrete batch plants are widely used in the large and medium-sized construction site, road and bridge engineering projects as well as concrete pre-production firms. As a concrete batch plant manufacturer, our company has batch plants for sale with competitive price and good performance.
Our company is one of professional concrete batching Plant manufacturers. With many years’ experience, we produce and supply various types of concrete batch plant, such as ready mix concrete batch plant,central mix concrete plant, mobile concrete batch plant and so on. Because of special concrete plant design, the concrete batch equipment accepts a good reputation and is sold very well all over the world.

We would like to highlight our concrete batch Plant,concrete mixer,Asphalt Mixing Plant and concrete brick making machine with good quality and competitive price.Haomei concrete batch plant sales its products are widely used in more than 60 countries, Mongolia, Zambia, Russia, and Paraguay, Nigeria, Bolivia, Ecuador, Paraguay, the Philippines, Sri Lanka, Saudi Arabia, Maldives, Indonesia, Uzbekistan, South Africa and other

Components of a concrete batch plant:

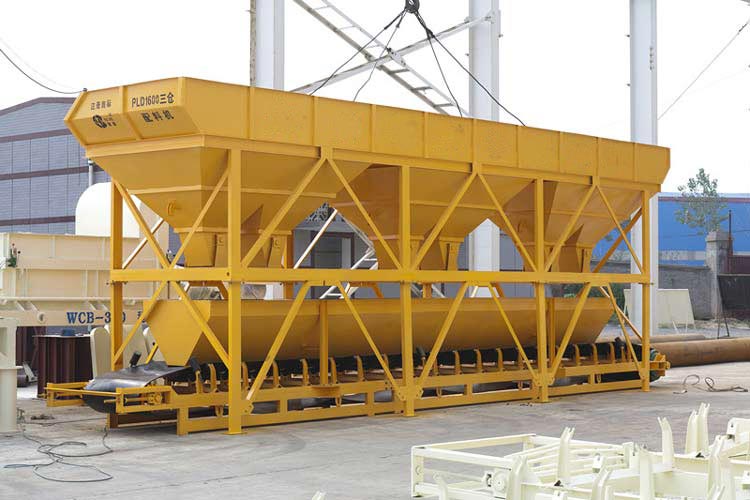

(1)Aggregate Batching Machine

The aggregate batching system of ready mix concrete machine include aggregate supply system, weighing system and electrical control system. The feeding device is driven by belt.The batching system is controlled by sensor.

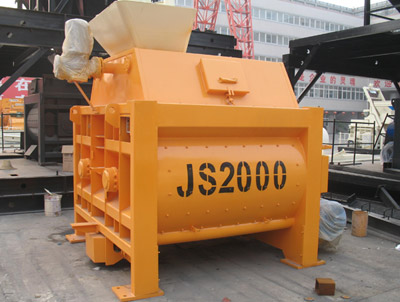

(2)Mixing System

Concrete batch plants usually adopt JS series twin shaft concrete mixer as the main mixer. Twin shaft concrete mixer belongs to forced concrete mixer and has stronger mixing effect and higher mixing efficiency than self-falling concrete mixer. It can be used to mix hard-dry concrete and light aggregate concrete.

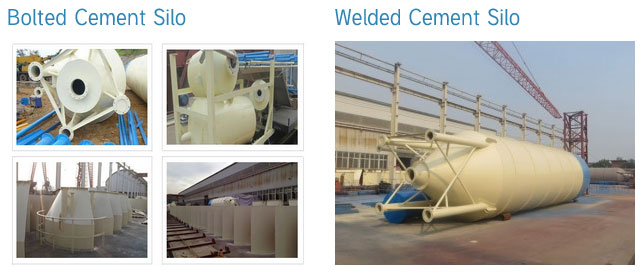

(3)Cement Silo

As a professional cement silo manufacturer, haomei provides bolted type and welded type storage silo in various capacities and dimensions. Bolted cement silo with special design can minimize the transport cost.

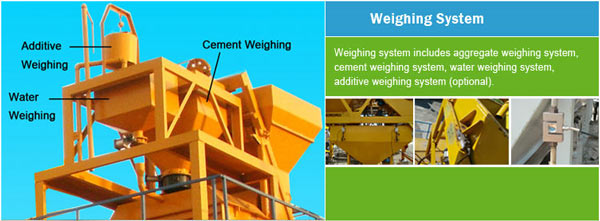

(4)Electrical Weighing System

The electrical control system of strong>concrete batch Plant can control two sets of separate mixer, cement weighing, water weighing, cement weighing and a series of aggregate batching system. The aggregate batching system can automatic control the batching process, connected to high reliable PLC and industry computer.

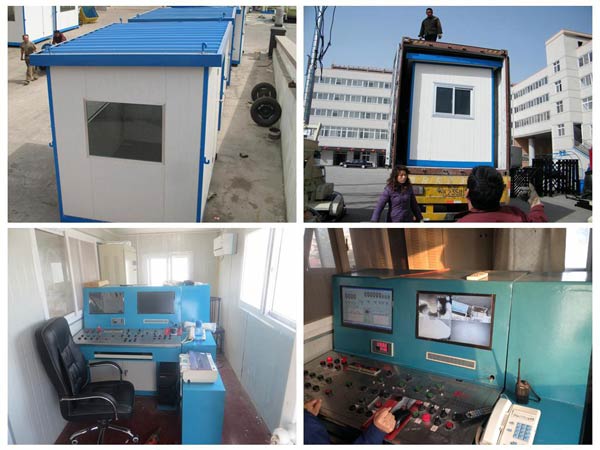

(5) Control System

The PLC programmable controller can control the production process with high reliability and stability. It can control the unloading ingredients, mixing and automatic control of the whole process of the concrete. Moreover, It also can dynamic display the process of weighing and discharging.

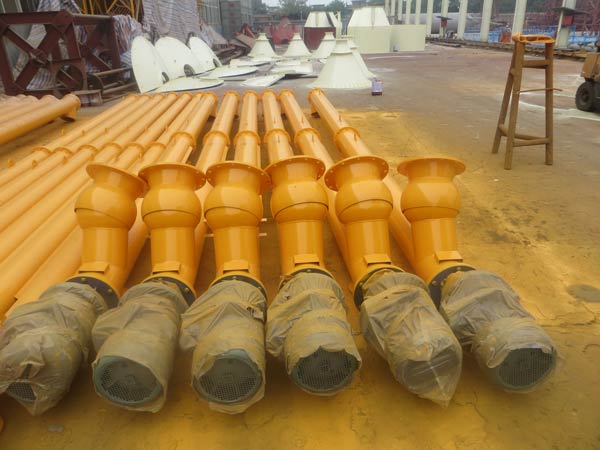

(6)Screw Conveyor

LSY screw conveyor is full with a screw inside, and the screw can continually convey materiel.The equipment adopts originated patent feed port, it is easy to install.

Specifications of concrete batch Plant models:

Model  2HZS120 HZS120 HZS90 HZS75 HZS60 HZS50 HZS35
Theoretical capacity/
Theory productivity (m³/h)
240 120 90 75 60 50 35
Model of mixer 2*JS2000 JS2000 JS1500 JS1500 JS1000 JS1000 JS750
Aggregate category 4 4 4 4 3 2--4 3
Maximum size of aggregate 80mm 80mm 80mm 80mm 80mm 80mm 80mm
Discharging height (m) 4.1 4.1 4.1 4.1 4.1 4.1 3.8
Aggregate weighing range 0-1500kg 0-1500kg 0-1300kg 0-1300kg 0-1000kg 0-1000kg 0-1000kg
Aggregate weighing accuracy ±2% ±2% ±2% ±2% ±2% ±2% ±2%
Cement weighing range 0-1100kg 0-1100kg 0-1100kg 0-1100kg 0-800kg 0-800kg 0-400kg
Cement weighing accuracy ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Water weighing range 0-1500kg 0-1500kg 0-500kg 0-500kg 0-350kg 0-350kg 0-200kg
Water weighing accuracy ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Admixture weighing range 0-60kg 0-60kg 0-40kg 0-40kg 0-30kg 0-30kg 0-30kg
Admixture weighing accuracy ±2% ±2% ±2% ±2% ±2% ±2% ±2%

At present, we have has many different ready mix concrete batch Plants for sale at low price. If you want to reduce the cost to import the concrete ready mix plant from China, please feel free to contact us at any time.
