Schematic Diagram

concrete batch Plant

haomei concrete batch Plant is divided into four parts: gravel feed, powder (cement, fly ash, bulking agents, etc.) to feed, water and feed additives, transmission and storage stirred their workflow shown in Figure 1. , the mixer control system power, into the human - machine dialogue operation interface, system initialization process, including recipe number, grade concrete slump, producers, etc. according to the amount of weight carried on each silo, weighing hoppers. detection, output material or material empty full signal, prompting the operator to determine whether to activate the control program starts stirring sand, stone belt motor fed into the metering hopper; open fly ash, cement tank valve, start the electromechanical screw conveyor ash cement to the metering hopper; open water reservoir and control valves admixture pool water and additives into the metering hopper metered meet the set requirements doo door open metering, mixing the ingredients into the mixer within already started to set. time to open the mixer door, into the concrete mixer had received material.

We offer concrete batch Plants with various sizes,Such as HZS25-25m³/h HZS35-35m³/h HZS60-60m³/h ,HZS90-90m³/h HZS120-120m³/h,HZS180-180m³/h commercial concrete batch Plant.Contact us for more information!

belt type concrete batch Plant

Haomei Belt type concrete batch Plant which is high-efficient equipment for ready mix concrete production. If you use belt conveyor to feed aggregates into the mixer continuously, the mixing efficiency is highly improved.

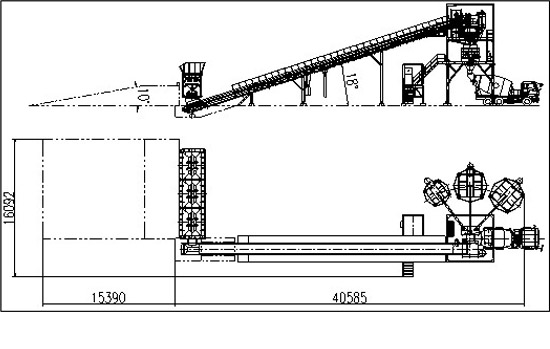

belt type concrete batch Plant Schematic Diagram

Belt Type Concrete Mixing Plant is one kind of construction equipment, which is used to produce concrete. Belt type cement mixing plant is made up of aggregate storing and weighing system, belt convey system, weighing system, concrete mixer, water supply system, additive supply system, control system, electric control system, etc..

Skip Type concrete batch Plant

haomei Skip Type concrete batch Plant belongs to compulsory concrete mixing plant.which is mandatory, and high-efficient equipment to produce plastic, dry-hard concrete, high production efficiency,

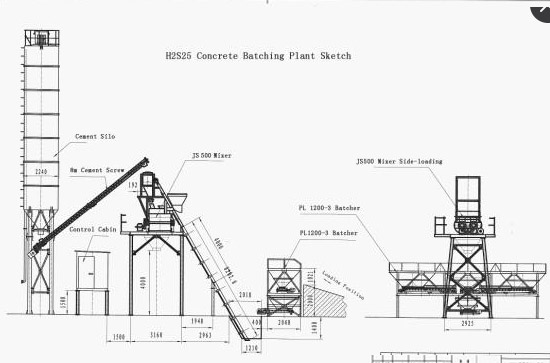

Skip type concrete batch Plant Schematic Diagram

haomei Skip Type concrete batch Plant adopts modular structure, it is specially designed for customers who need to change the construction site frequently. It is simple in installation, compact in structure, place saving and high automation. It is mainly used for bridge, building, water conservancy project, power and other infrastructure projects.

Products picture

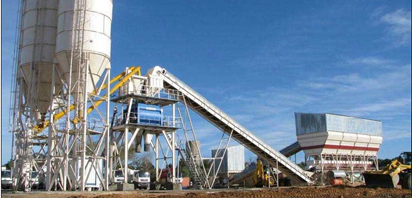

HZS180 concrete batch Plant

Belt Type concrete batch Plant

Mobile concrete batch Plant

Main components

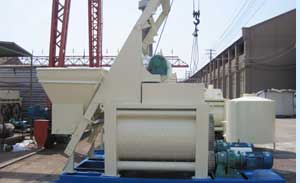

Mixing main engine Concrete mixer

Mixing main engine Concrete mixer

Proportioning system-Batcher

Proportioning system-Batcher

Cement silo

concrete batch Plant for Cement silo

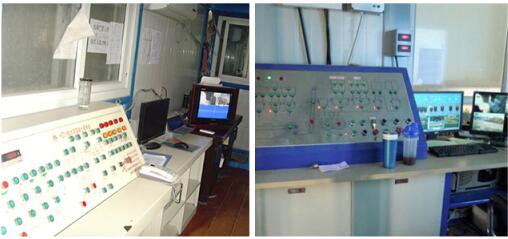

Electric control system-ndustrial computer

Electric control system-ndustrial computer
